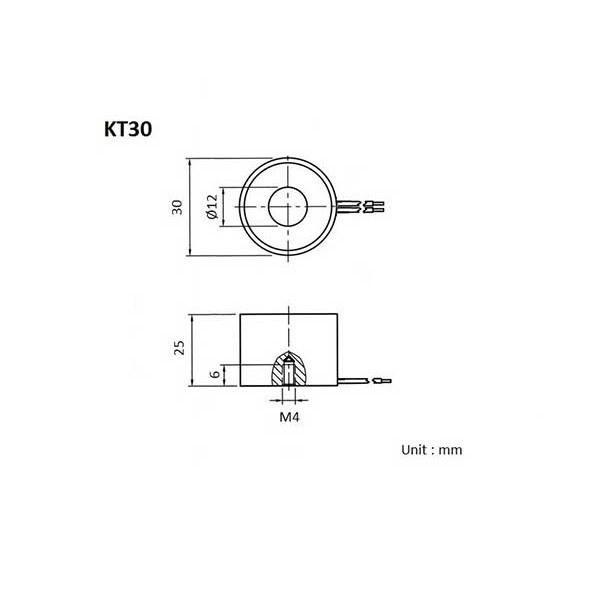

KT30 Electro-Magnet
• Operation voltage: DC voltage
• Insulation class: B CLASS. (130°C)
• Dielectric strength: AC 1000V,50/60Hz, 1min. (at normal temperature and normal humidity)
• Insulation resistance: more than 100M ohms on a DC 500V (at normal temperature and normal humidity)
DESCRIPTION
Size(mm)
φ30×25
Power (W)
3.8
Holding force (N)
195
