KT50 Electro-Magnet
• Operation voltage: DC voltage
• Insulation class: B CLASS. (130°C)
• Dielectric strength: AC 1000V,50/60Hz, 1min. (at normal temperature and normal humidity)
• Insulation resistance: more than 100M ohms on a DC 500V (at normal temperature and normal humidity)
DESCRIPTION

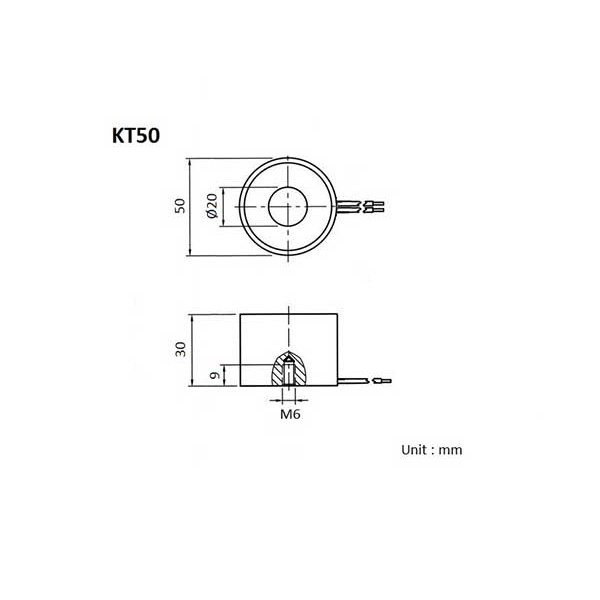

Size（mm）
φ50×30
Power (W)
11
Holding force (N)
730
