MK1037 Latching Solenoid (Keep Solenoid, Permanent Magnet Solenoid)
Controlling door and cabinet access with the power of Electromagnetism.
This latch / lock solenoid is an electronic lock. When positive powered with 12V, 24VDC source, the latch is pulled in, allowing movement. When negative power, the latch is extended with returned spring against permanent magnet, blocking movement and your door or secret drawer are safe and secure.
DESCRIPTION

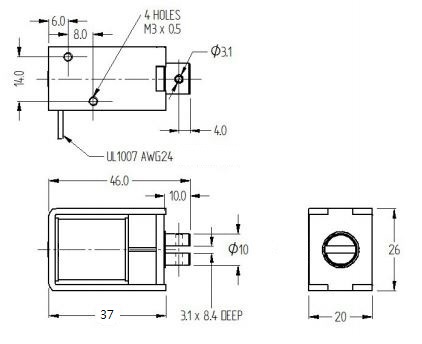

Size(mm)
37 L × 20 W × 26 H
Plunger Dia.(mm)
10

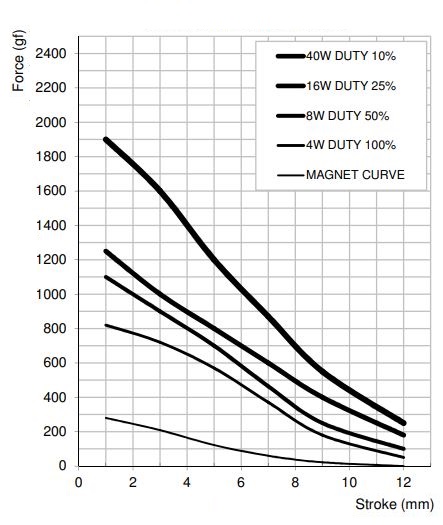

Holding Force
20N min.
