MD0421 Open Frame Solenoid

• Operation voltage: DC or AC voltage

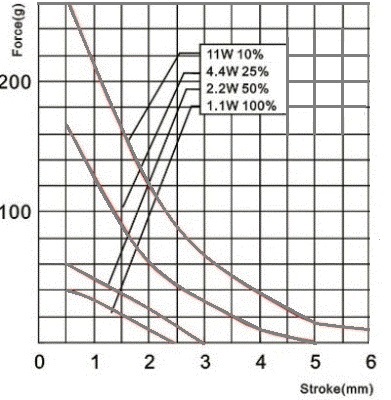

• Duty Cycle
Continuous: 100% On Time
Intermittent: (On Time) / (On + Off Time) x 100%
• Insulation class: B CLASS. (130°C)
• Dielectric strength: AC 1000V,50/60Hz, 1min. (at normal temperature and normal humidity)
• Insulation resistance: more than 100M ohms on a DC 500V (at normal temperature and normal humidity)


• Life: 1,000,000 cycles minimum

DESCRIPTION

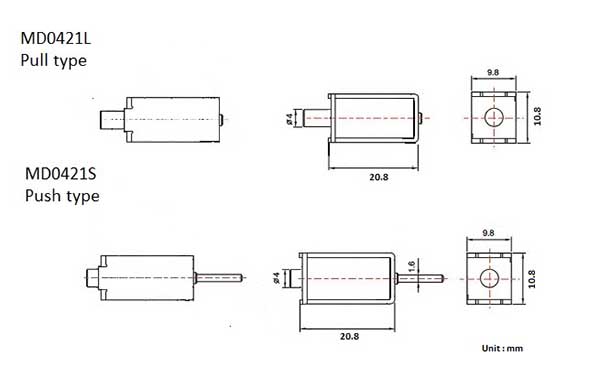

Size

L W H (mm)
20.8×10.8×9.8
Plunger Dia. (mm)
4
